Professional materials for a watertight repair on a localised area
The WRc-approved Pipe Doctor system includes professional materials to achieve quality repairs.
Materials are available as kits, containing everything needed for a single repair, as well as in bulk form, as rolls of matting or containers of resin & water glass (sold separately). Cutting & measuring of the items is the responsibility of the customer.
Matting
Le matelas de fibres de verre est disponible en rouleaux pour les réparations droites ou pour les réparations de rayon (pour les coudes).
Straight matting is available in widths of 1250mm (for 550mm repairs) or 2500mm (for 1m repairs). Radius bulk matting is available at a width of 1250mm.
Les rouleaux de tapis en vrac sont vendus au kilogramme et pèsent environ 50-55 kg. Un rouleau de 50 kg est suffisant pour réparer, par exemple, 116 réparations de 100 mm de diamètre.
Résine

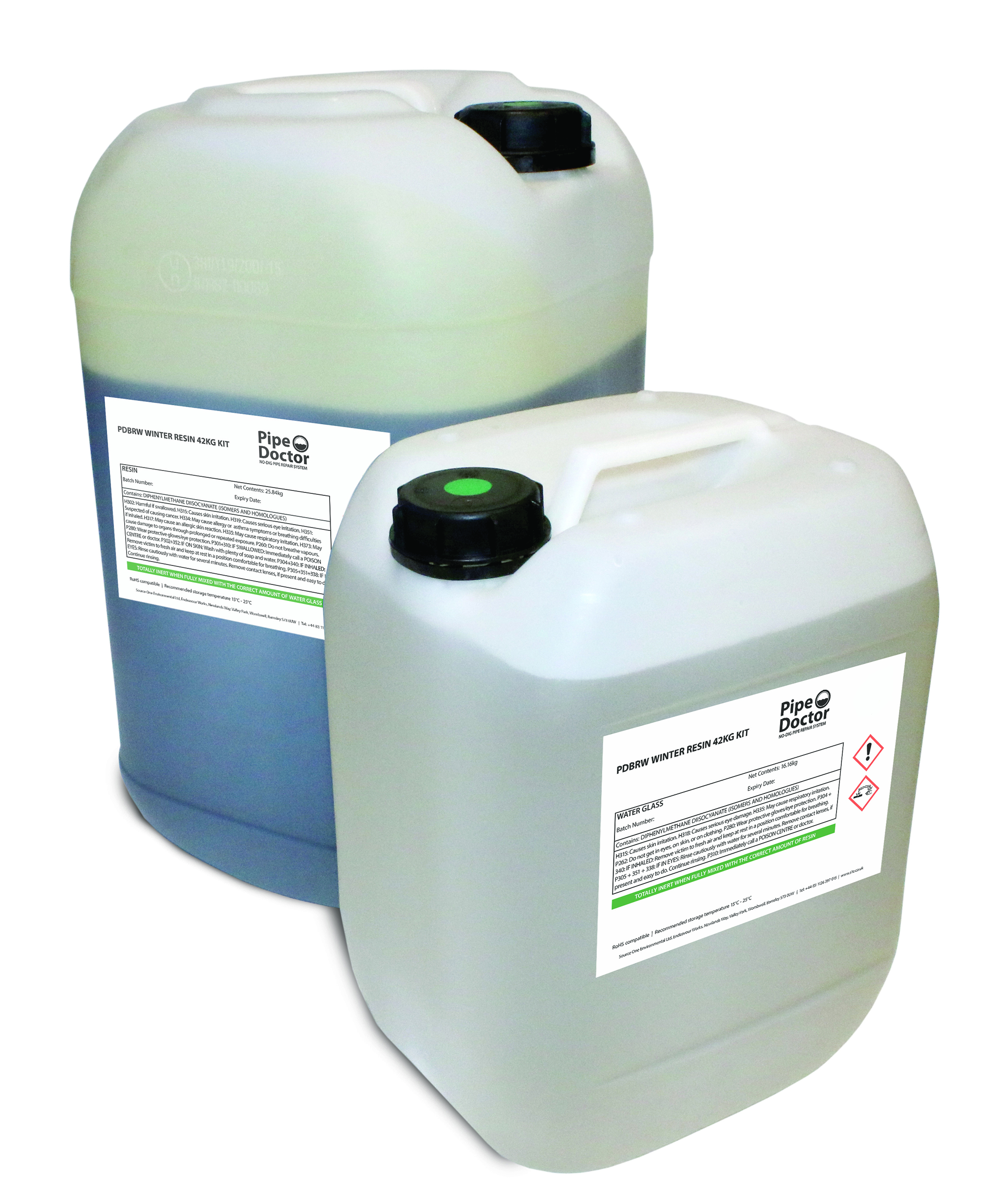

Pipe Doctor resin is supplied in two parts – silicate resin and sodium waterglass – which are activated on mixing.
Three formulations are available, Summer, Winter and Rapid, which give different working times and speed of curing, to suit the ambient temperature when being installed on site.
Bulk Resin comes as a 42kg Kit:
- Fût de 28 kg de Composant B - Résine de silicate
- Fût de 14 kg de Composant A - Verre d'eau sodique
Il est mélangé dans le rapport 2:1, c'est-à-dire 2 parties du composant B pour 1 partie du composant A.
One Bulk Resin Kit is sufficient to cover, for example, 39 x 100mm diameter x 550mm long repairs or 20 x 100mm diameter x 1m long repairs.
Resin coverage is c. 1.6ltr per square metre
Please note:In regards to Pipe Doctor resin, as of 24th August 2023, adequate training is required before industrial or professional use of this product.
Equipment & Hardware
In addition to the materials above, equipment will also be required on site to carry out the repair. S1E supplies much of this equipment, which can be purchased as individual products or within a Contractor Pack, which provides all the equipment needed in one bundle.
Hardware available from S1E
- Compressed Air Supply (as an oil free electric 240v/25ltr compressor and receiver)
- Flexible Air Push Rods
- Adaptateur flexible
- Inflatable Packers
- Pressure Regulator
- Airline (compressor to regulator)
Other Hardware Requirements
- Couteau de sécurité
- Corde d'extraction et mousqueton
- Pince coupante
- Jetting & Vac Equipment
- Duct Tape
- Équipement de surveillance CCTV
- Barrières de sécurité
- EPI correct
